DY-01 PU Steel Wire Hose
DY-01 PU Steel Wire Hose

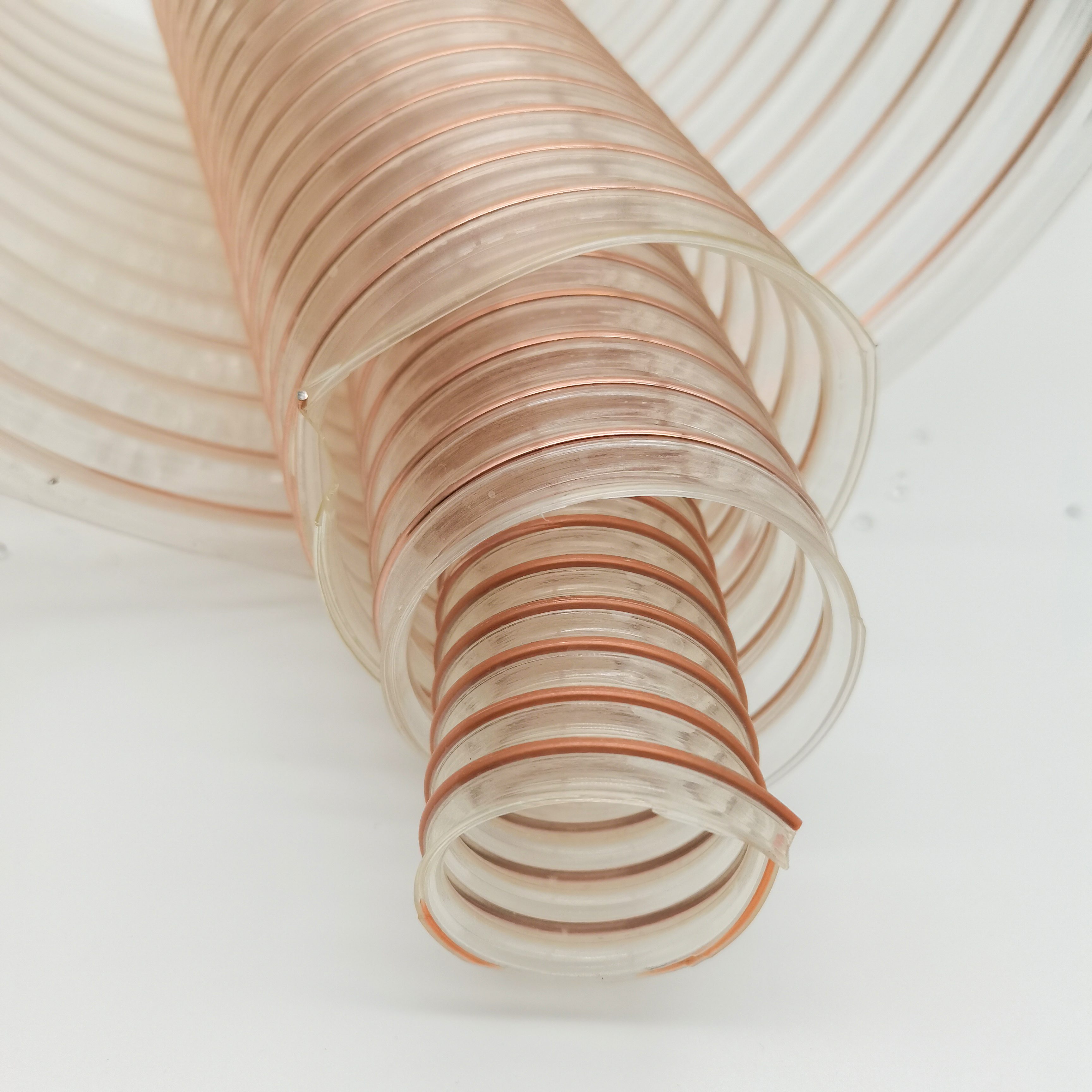

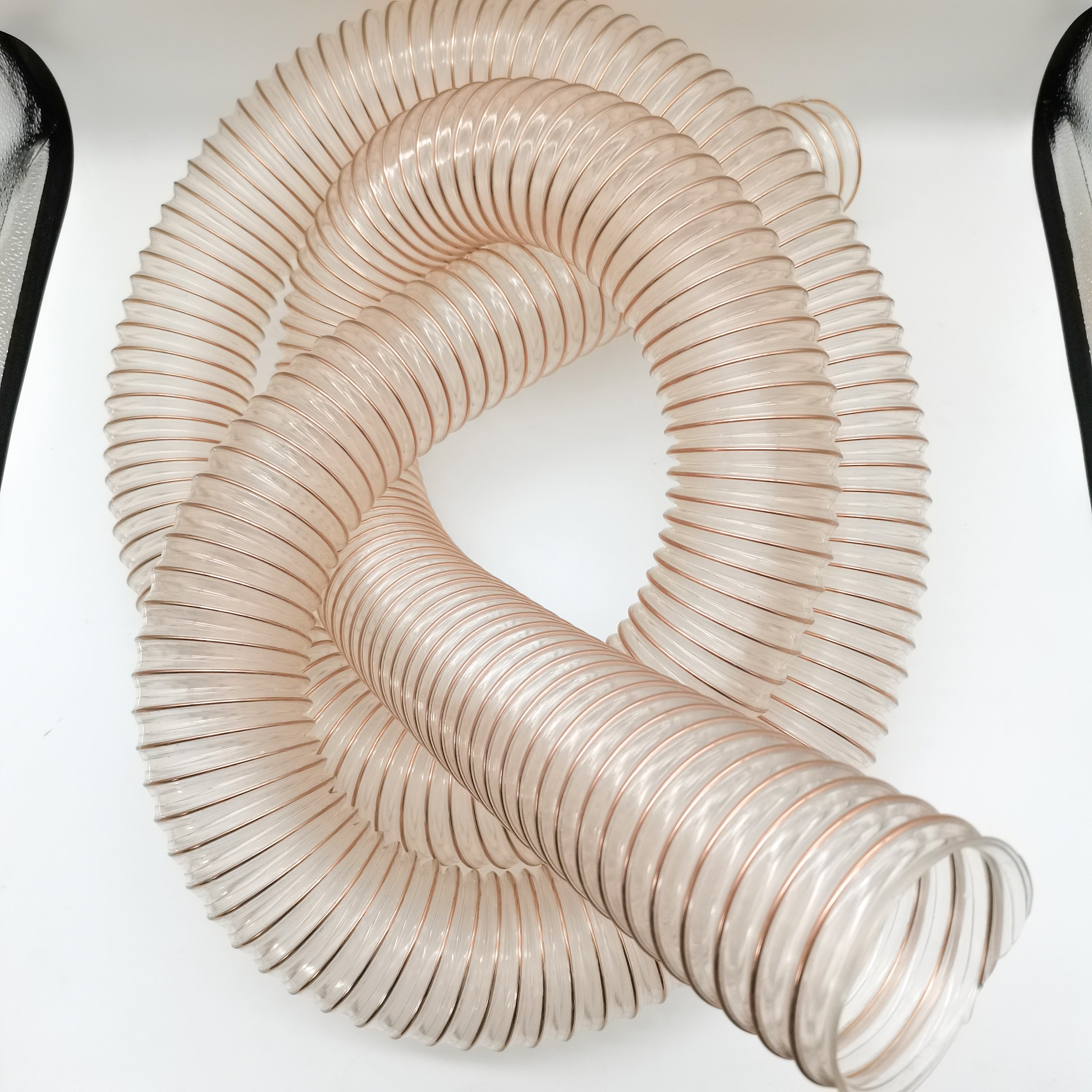

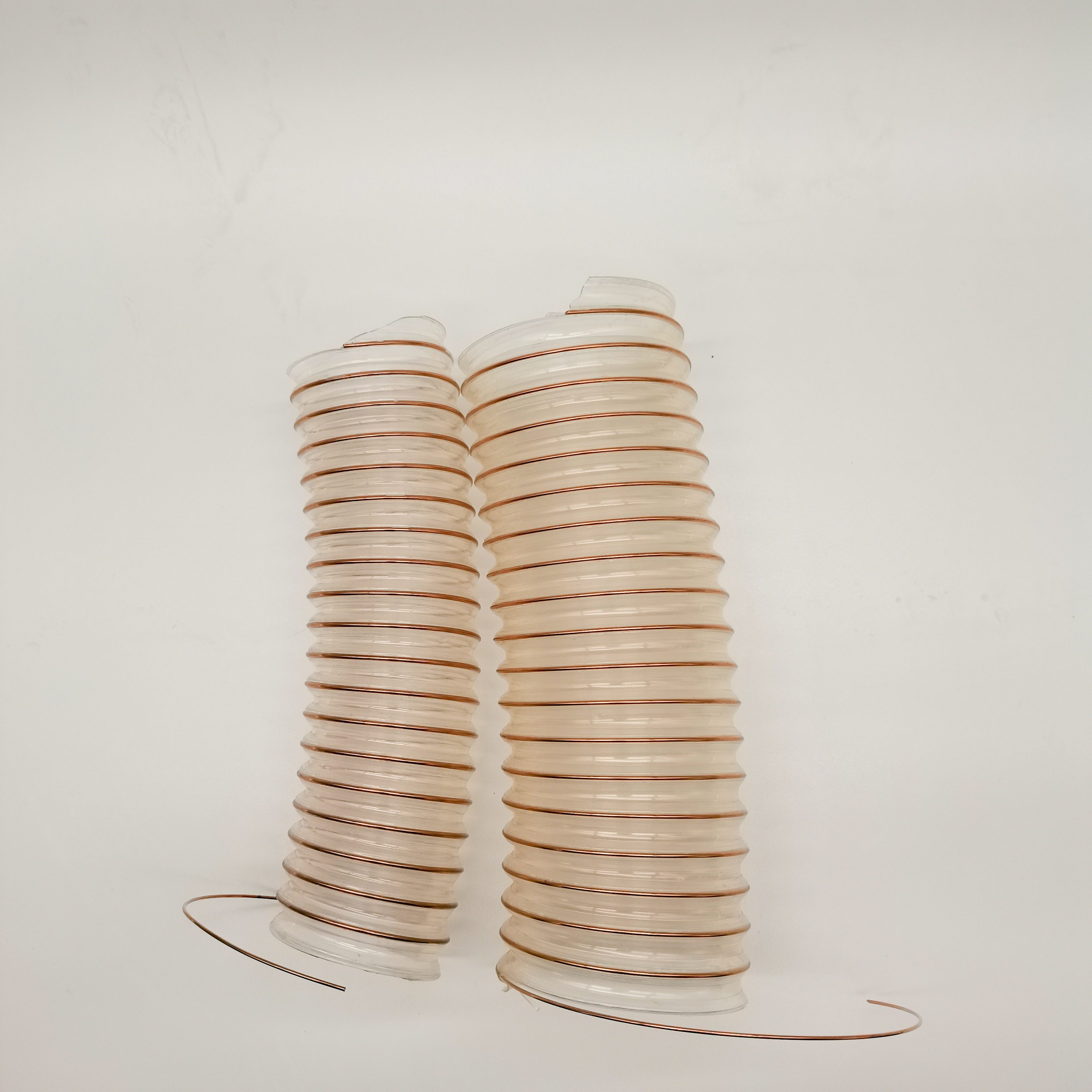

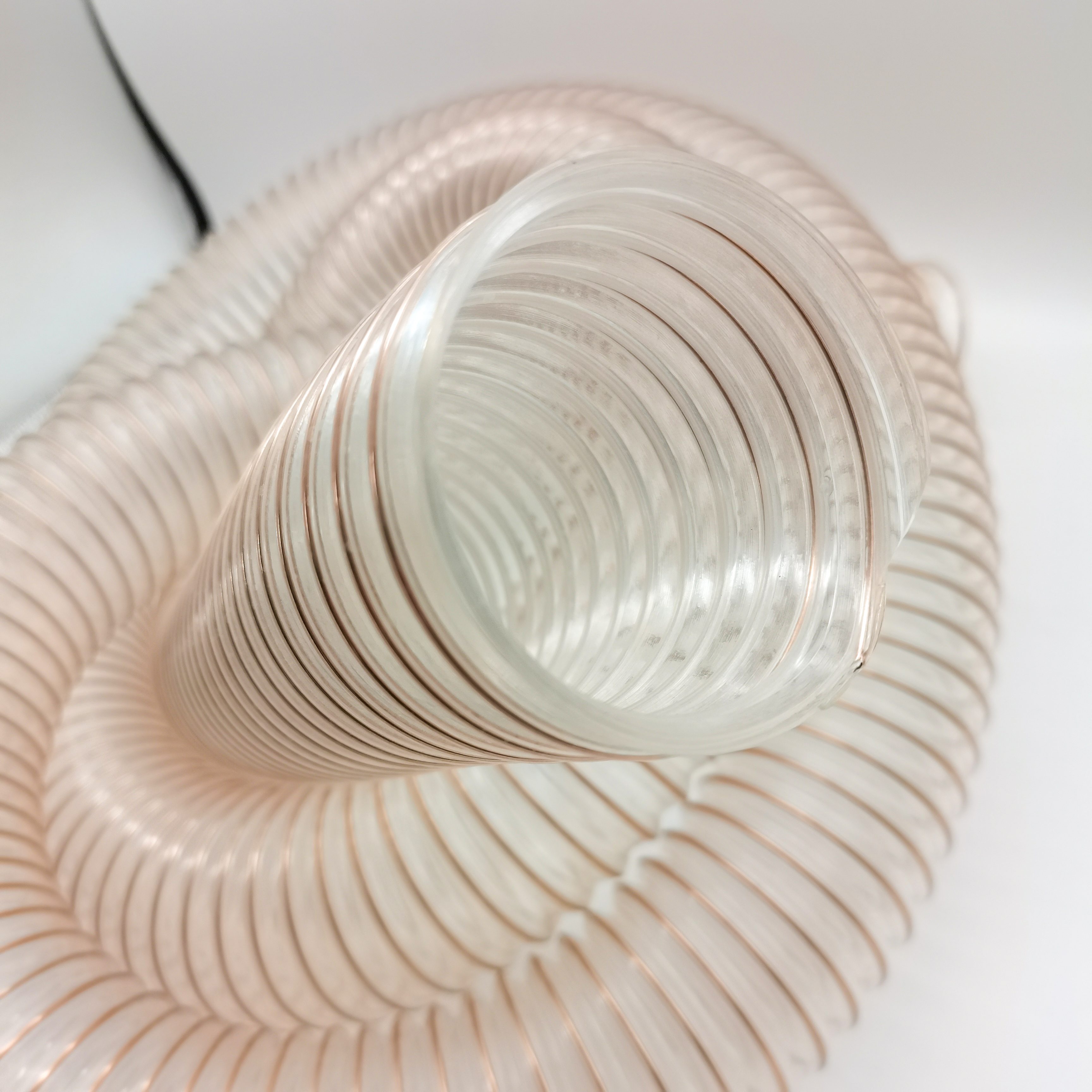

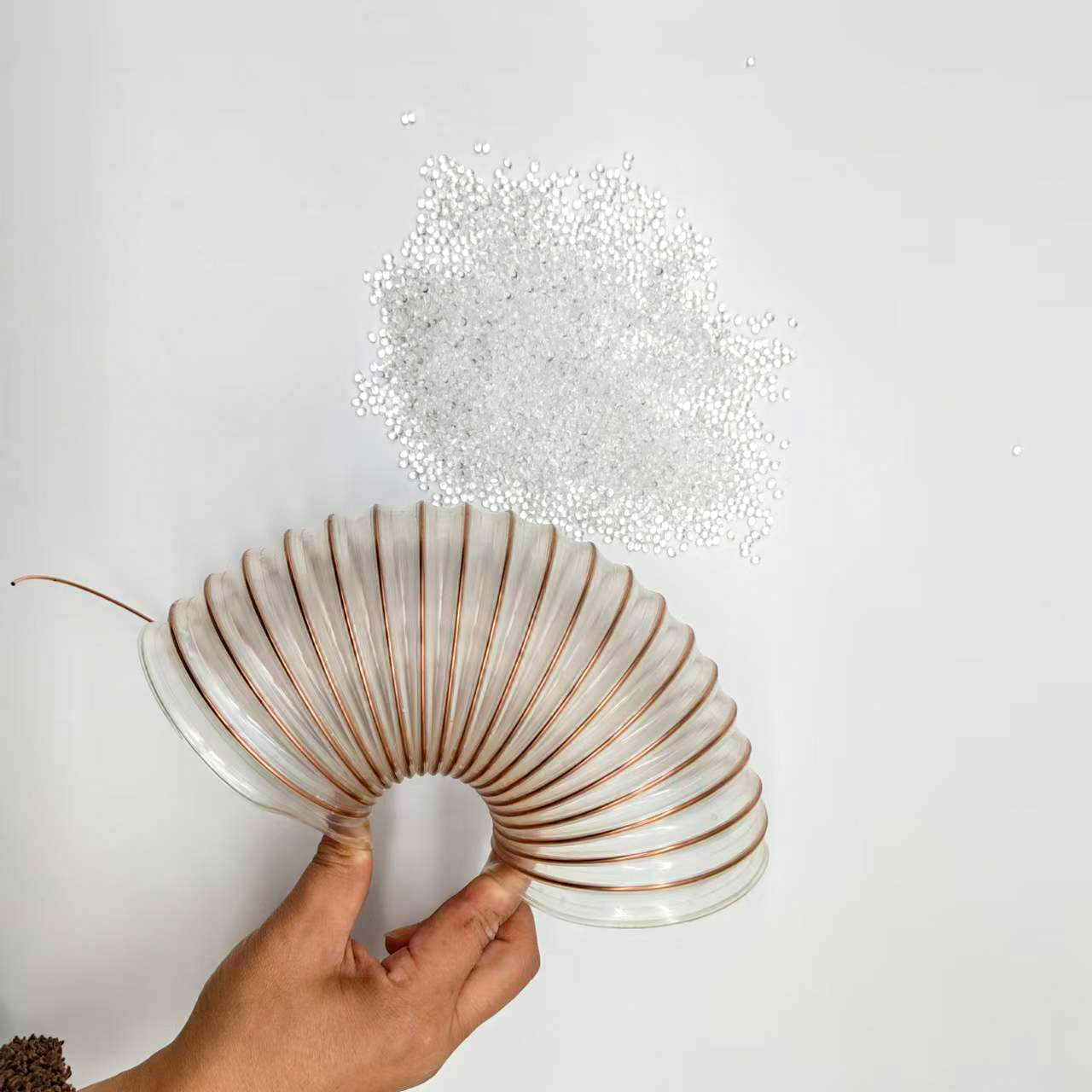

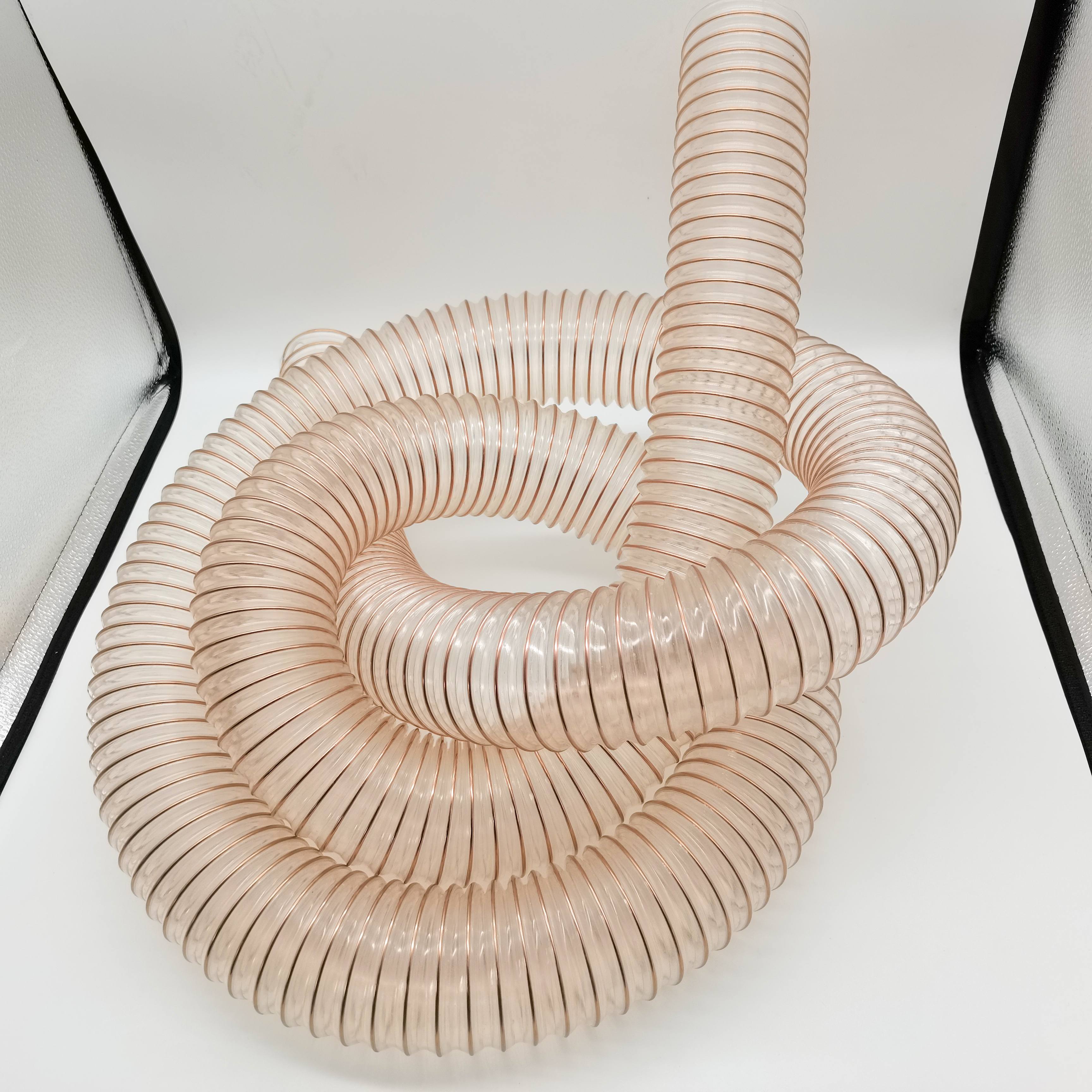

PU Reinforced Suction Hose is manufactured from high-quality polyurethane with an external PU reinforcement profile, providing excellent flexibility, abrasion resistance, and smooth material flow for industrial conveying and suction applications.
| Standard Specifications | 25mm-400mm |
|---|---|
| Standard Thickness | 0.6mm, 0.9mm, 1.2mm, 1.5mm |
| Standard Length | 10m, 15m, 20m |
| Operating Temperature Range | -40℃ to +90℃, up to +125℃ for short-term use. |
| Features | Made of wear-resistant PU material with embedded copper-plated spiral steel wire, featuring wear resistance, aging resistance, tear resistance, high transparency, lightweight, flexibility, and vacuum suction. The spiral steel wire is grounded to dissipate static electricity, and has a compression ratio of 3:1. |
| Applications | Suitable for dust collection and suction equipment, for sucking or feeding small particles, debris, abrasive powders, and chemical powders. Primarily used for ventilation and dust collection in high-dust production environments such as woodworking workshops, ceramic workshops, and cement workshops. Can also be used as a protective sleeve. |

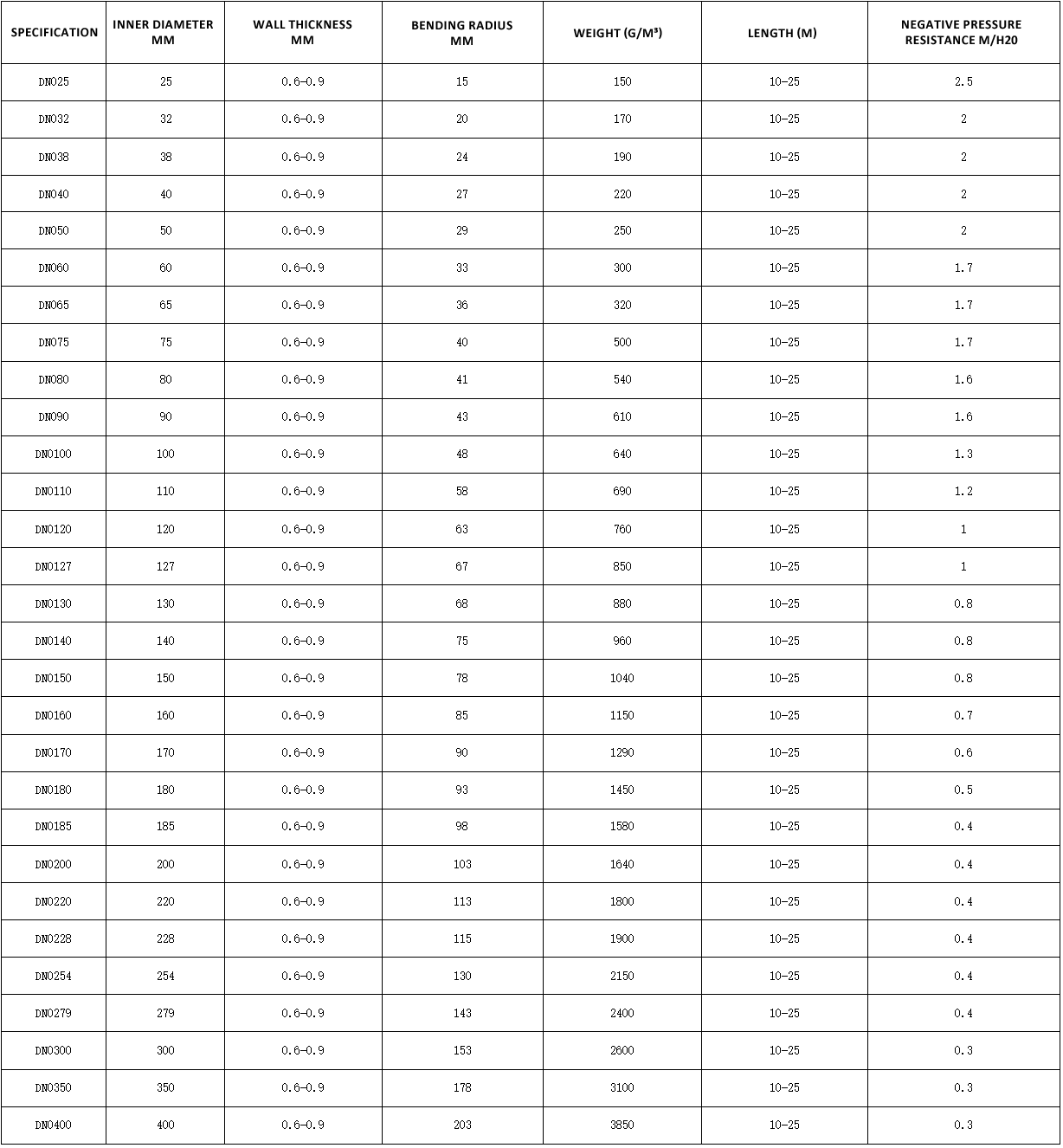

Standard specifications for PU steel wire spiral pipe:
Steel Wire Reinforcement
Integrated steel wire helix provides excellent structural strength and anti-collapse performance.
Superior Abrasion Resistance
Premium polyurethane material ensures outstanding wear resistance and extended service life.
Excellent Flexibility
Maintains flexibility even under demanding working conditions for easy installation.
Versatile Industrial Use
Suitable for dust collection, ventilation, material conveying, and vacuum systems.
